Pulmonary atelectasis can be divided into six types, based on mechanism: resorptive, adhesive, compressive, passive, cicatrization, and gravity-dependent. Whereas atelectasis can be divided into types based on these different mechanisms, in any given patient several mechanisms can occur simultaneously.

Resorptive atelectasis, the most common type, results from resorption of gas from the alveoli when communications between the alveoli and the trachea are obstructed. Resorptive atelectasis is therefore also referred to as obstructive atelectasis. The obstruction can occur at the bronchial or bronchiolar level. The most important condition producing intrinsic bronchial obstruction is bronchogenic carcinoma. Other causes of bronchial obstruction include other primary lung and metastatic neoplasms, inflammatory etiologies (especially tuberculous or fungal infection), aspirated foreign bodies, mucous plugging, a malpositioned endotracheal tube (Fig. 11-1), and extrinsic compression of an airway by neoplasm, lymphadenopathy, aortic aneurysm, or cardiac enlargement. Resorptive atelectasis is most commonly caused by obstruction of the small peripheral bronchioles, from impairment of mucociliary transport and pooling of retained secretions in the smaller airways. The larger airways are often patent and filled with air, resulting in air bronchograms within the atelectatic lung (Fig. 11-2). The presence of air bronchograms within the atelectatic lung usually, but not always, indicates the absence of a central obstructing neoplasm. Some of the conditions known to impair mucociliary clearance include thoracic and abdominal pain, central nervous system depression, respiratory depressant medication, general anesthesia, endotracheal intubation, and inhalation of toxic fumes or smoke (5). Resorptive
atelectasis can also be associated with certain chronic obstructive airway diseases (e.g., asthma, chronic bronchitis, and emphysema), and it can be seen in acute bronchitis, bronchiolitis, and aspiration and other types of pneumonia from obstruction of small airways by inflammatory exudate.

Atelectasis resulting from surfactant deficiency is termed adhesive atelectasis. Insufficient surfactant leads to alveolar collapse; once collapsed, the alveolar walls tend to adhere, making re-expansion difficult. Diffuse surfactant deficiency can result from hyaline membrane disease, acute respiratory distress syndrome, smoke inhalation, cardiac bypass surgery, uremia, and prolonged shallow breathing (5).

Compressive atelectasis is caused by any space-occupying lesion of the thorax compressing the lung and forcing air out of the alveoli. Such space-occupying lesions include pleural effusion (including empyema), pneumothorax, pleural tumors, large pulmonary parenchymal masses, large emphysematous bullae, and lobar emphysema (6). Diaphragmatic hernias and abdominal distension from a variety of causes can also compress the lung.

The distinction between compressive and passive atelectasis is not clear cut. Any space-occupying mass within the thorax can either compress the lung or allow the lung to retract, passively, from the lung's normal elastic recoil mechanism.

Volume loss resulting from decreased pulmonary compliance as the result of pulmonary fibrosis is termed cicatrization atelectasis. This type of atelectasis is often associated with bronchiectasis in the affected lung. A number of conditions can result in pulmonary fibrosis and cicatrization atelectasis - for example, idiopathic pulmonary fibrosis, sarcoidosis, pneumoconioses, collagen vascular diseases, chronic tuberculous and fungal infections, and radiation fibrosis.

Normally, the most gravity-dependent portions of lung receive greater perfusion and have less alveolar expansion than non–gravity-dependent portions of lung. These gravity-dependent alterations in alveolar volume are normal but can exacerbate atelectasis in the dependent portions of the lungs, particularly in bedridden hospitalized patients with prolonged shallow breathing. Atelectasis occurring from these forces is termed gravity-dependent atelectasis.

Radiographic signs of atelectasis are outlined in Table 11-1 (5). Opacification of atelectatic lung may not be seen until a considerable loss of volume has occurred. When edema fluid is drawn into the collapsing lung, pneumonia has resulted in atelectasis, or postobstructive pneumonitis is present, there can be abnormal opacification of lung without substantial evidence of volume loss. Elevation of the diaphragm as a sign of volume loss is most easily appreciated when comparison is made to a normal baseline radiograph. A key radiographic feature of upper lobe atelectasis is superior displacement of the hilus. Conversely, in lower lobe atelectasis, the hilus is displaced inferiorly. There is usually no hilar displacement with right middle lobe or lingula atelectasis. Displacement of a fissure follows the movement of the atelectatic lung and is most apparent with atelectasis of an entire lobe. Lung surrounding atelectatic lung often hyperexpands in an attempt to fill in the missing volume of lung; this is referred to as compensatory hyperexpansion or sometimes confusingly referred to as compensatory emphysema. Emphysema is a pathologic condition involving destruction of alveolar walls. Although emphysematous lungs are invariably hyperinflated, hyperexpanded lungs are not invariably emphysematous. If atelectasis affects only one lung, the ribs on that side may come to lie closer together than the ribs on the contralateral normal side. This should be distinguished from the approximation of ribs caused by poor patient positioning at the time the radiograph was obtained.

One of the pitfalls in diagnosing left lower lobe atelectasis is artifactual loss of the medial margin of the left hemidiaphragm and abnormal opacity in the left lower lung as a result of incorrect angulation of the x-ray beam. Lordotic angulation of the beam by as little as 10 degrees results in the beam no longer being tangential to the apex of the hemidiaphragm, creating illusory opacity in the left retrocardiac region that may be interpreted as atelectasis or airspace disease in the left lower lobe. Normal appearing diaphragms and lungs on a lateral view are helpful in making the distinction.

In an adult with lobar atelectasis, a central obstructing neoplasm should always be considered as the underlying cause. Bronchogenic carcinoma is relatively uncommon in adults under the age of 40, when bronchial carcinoid tumor is more likely. In children with lobar collapse, an aspirated foreign body or asthma is the usual cause. In postoperative patients, the most common cause is a mucous plug.

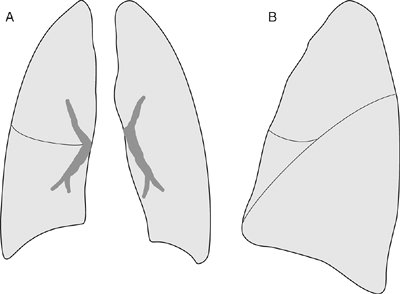

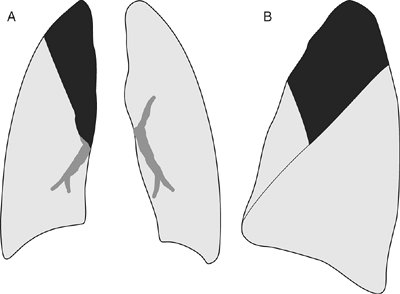

With right upper lobe atelectasis, the major and minor fissures move upward (Figs. 11-3, 11-4, 11-5, 11-6); with severe atelectasis, the lung can approximate the mediastinum and lung apex. With complete atelectasis, or collapse of the right upper lobe, the minor fissure parallels the mediastinum and resembles pleural thickening or mediastinal widening. Compensatory hyperexpansion of the middle and right lower lobes leads to outward and upward displacement of the right lower lobe pulmonary

artery. Upward angulation of the right mainstem and lower lobe bronchi may be difficult to appreciate on chest radiography. Two radiologic signs are associated with right upper lobe atelectasis. The Golden S sign, or S sign of Golden (see Fig. 2-11), refers to right upper lobe collapse around a central obstructing mass. The juxtaphrenic peak sign (see Fig. 2-14) refers to a small triangular shadow based on the apex of the dome of the right hemidiaphragm with loss of silhouette of the adjacent hemidiaphragm. On computed tomography (CT), a collapsed right upper lobe appears as a triangular soft tissue density lying against the mediastinum and the anterior chest wall. The border formed by the major fissure posteriorly and the minor fissure laterally is sharp.

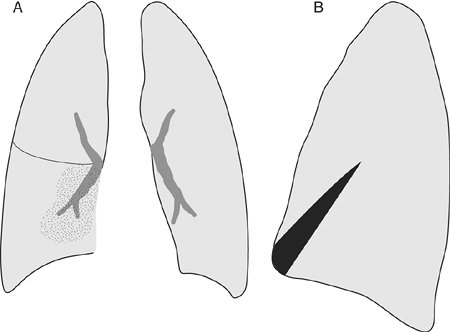

Atelectasis of the right middle lobe can be easily overlooked on the frontal chest radiograph. Loss of silhouette of the right border of the heart is often seen, but not always. The atelectatic lobe is more readily recognized on the lateral chest radiograph as a well-defined linear or triangular band of density lying between the major and minor fissures (with approximation of these fissures) and extending downward and forward from the hilum (Fig. 11-7). The collapsed lobe can be very thin and misinterpreted as a thickened fissure. On CT scans, right middle lobe collapse appears as a triangular density bounded posteriorly by the major fissure, medially by the mediastinum at the level of the right atrium, and anteriorly by the minor fissure (Figs. 11-8 and 11-9). The posterior boundary should be well defined. Chronic atelectasis of the right middle lobe is referred to as middle lobe syndrome, a term that was coined in 1948 to describe the presence of right middle lobe atelectasis and chronic inflammation secondary to enlarged lymph nodes impinging on the middle lobe bronchus (7). The middle lobe bronchus is long and narrow, and it is more easily obstructed at its origin by lymph nodes than are other bronchi. The syndrome was initially described with tuberculosis, but it may also be seen in other infections and endobronchial tumors; it may even be seen in the absence of obstruction.

Combined atelectasis of the right upper and middle lobes is unusual because there is no single bronchus to the right upper and middle lobes that does not also supply the right lower lobe. The cause is almost always cancer beginning in the upper lobe bronchus and growing down one side of the bronchus intermedius to involve the middle lobe bronchus. The appearance of combined right upper and middle lobe atelectasis is similar to that seen with left upper lobe atelectasis.

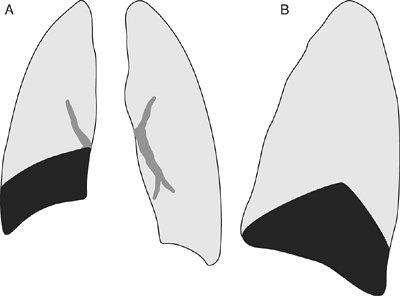

Combined right lower and middle lobe atelectasis is a fairly common combination, is seen with obstruction to the bronchus intermedius, and is similar in appearance to right lower lobe atelectasis on both posteroanterior (PA) and lateral chest radiographs (Fig. 11-10). With combined right lower and middle lobe atelectasis, however, the abnormal parenchymal opacity extends all the way to the lateral costophrenic angle on the PA view and from the front to the back of the thorax on the

lateral view. On the frontal radiograph, there is a superficial resemblance to an elevated diaphragm, but the lung above it (right upper lobe) is unusually clear instead of appearing "expiratory." The diagnosis is made much more easily with CT because the bronchi can be identified individually.

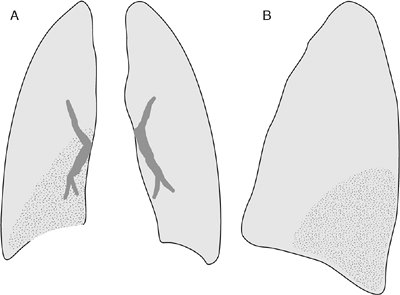

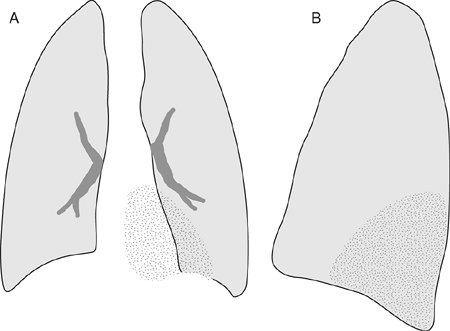

Atelectasis of either lower lobe results in backward and medial rotation of the major fissure, as well as downward displacement of the upper half of the fissure. With right lower lobe atelectasis, the minor fissure can be displaced inferiorly (Figs. 11-11 and 11-12). The atelectatic lobe lies posteromedially in the lower thoracic cavity, with a resulting triangular opacity based on the diaphragm and mediastinum, and with the fissure running obliquely through the thorax (Figs. 11-13 and 11-14). When a lower lobe collapses completely, it becomes very thin and appears on the PA chest radiograph as a sliver lying against the mediastinum. On the lateral radiograph, lower lobe atelectasis results in loss of the outline of the posterior half of the hemidiaphragm shadow. Also, with lower lobe atelectasis, the lower vertebrae appear more opaque than the vertebrae higher up; this results in a situation that is the opposite of
normal, where the opacity gradually decreases in moving from superior to inferior along the thoracic spine and has been called the spine sign (Fig. 11-15). On CT scans, a collapsed lower lobe produces a triangular opacity in the posterior chest against the spine.

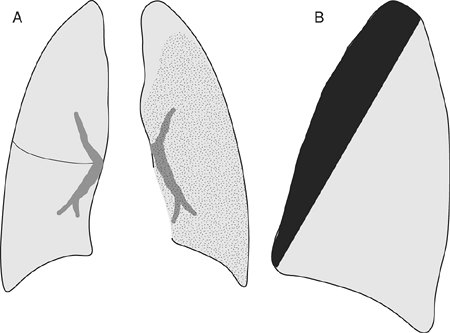

The radiologic appearance of left upper lobe atelectasis is markedly different from that of right upper lobe atelectasis because there is no minor fissure on the left. In left upper lobe atelectasis, the lobe collapses forward, pulling the expanding lower lobe behind it (Fig. 11-16). On the frontal radiograph, the atelectatic lobe is seen as hazy opacification extending out from the left hilum, often reaching the lung apex, fading laterally and inferiorly (Figs. 11-17 and 11-18). It is important not to mistake the abnormal parenchymal opacity as representing pneumonia, and this mistake will not be made if the other signs of volume loss are appreciated. These signs include loss of the left cardiomediastinal silhouette, elevation of the left hemidiaphragm, and shift of the mediastinal structures to the left. With complete collapse, the upper margin of the aortic arch is visible because the superior segment of the lower lobe hyperexpands to take the place of the posterior segment of the upper lobe. This crescentic lucency, which represents the hyperexpanded superior segment of the left lower lobe invaginating between the aortic arch and collapsed left upper lobe, is referred to as the luftsichel sign (see Chapter 2). This sign can be seen on the frontal chest radiograph and on CT. The hyperexpansion of the left lower lobe also results in elevation of the left hilum and outward angulation of the left lower lobe pulmonary artery. The left main bronchus assumes a near horizontal course and the lower lobe bronchus runs more vertically than normal. On the lateral radiograph, the major fissure is displaced anteriorly, paralleling the anterior chest wall; the atelectatic left upper lobe is seen as an abnormal band of retrosternal opacification. Left upper lobe atelectasis in an adult patient is especially important to recognize because of the frequency with which it is caused by endobronchial carcinoma.

Complete collapse of either lung results in opacification of the hemithorax and shift of the mediastinal structures to the side of collapse (Fig. 11-19). There is usually hyperexpansion of the opposite lung into the involved hemithorax. The differential diagnosis of an opaque hemithorax with volume loss includes congenital absence of a lung (the bony thorax on
the affected side is usually underdeveloped), remote traumatic injury to the bronchus on the affected side (Fig. 11-20), and pneumonectomy (hilar surgical clips provide a clue to the underlying cause of mediastinal shift). Intubated patients are at increased risk of mucous plugging of the airways, and whenever acute lobar or complete lung collapse is seen in this patient population, mucous plugging should be suspected (Fig. 11-21). It is important to recognize lung collapse related to massive pleural effusion, which can (but does not always) result in opacity of the ipsilateral hemithorax and shift of the mediastinum to the opposite side (Fig. 11-22). Parenchymal masses may be obscured on chest radiography when accompanied by lung collapse secondary to central obstruction or massive pleural effusion. In some cases, an opaque hemithorax may represent a combination of a parenchymal mass, lung collapse, and pleural effusion. The overall balance of volume loss and mass effect will determine the position of the mediastinum.

For descriptive purposes, atelectasis can be divided into several types other than lobar atelectasis, depending on the anatomic location of the atelectatic lung. Round atelectasis is a form of chronic atelectasis associated with pleural disease, often benign asbestos-related pleural disease, and is discussed in Chapter 3.

Discoid atelectasis, also referred to as platelike or linear atelectasis, is a form of peripheral pulmonary volume loss that is not secondary to bronchial obstruction. First described in 1936 by Fleischner (8) and, therefore, also referred to as Fleischner lines, the atelectasis is disc or plate shaped. Discoid atelectasis usually abuts the pleura and is perpendicular to the pleural surface; the thickness ranges from a few millimeters to a centimeter or more, and the lesions are therefore usually seen as linear or bandlike opacities. The mechanism of discoid atelectasis is hypoventilation, which leads to alveolar collapse. Although often of little clinical significance, multiple areas of discoid atelectasis can be physiologically significant in certain conditions, such as after general anesthesia.

The radiographic identification of subsegmental atelectasis can be difficult. When atelectasis is present at the subsegmental

level, many secondary pulmonary lobules within the affected segment or lobe may remain aerated, whereas others collapse. In such cases, and when multifocal, the degree of volume loss can be minimal, and the radiograph may show only patchy opacities resembling bronchopneumonia. As more secondary pulmonary lobules collapse within the affected segment or lobe, crowded vessels and bronchi, hilar displacement, or fissural displacement will become apparent.

Generalized or diffuse atelectasis is a term used to describe widespread volume loss in the lungs in the absence of specific signs of linear, segmental, or lobar atelectasis (5). There can be marked arteriovenous shunting, but the opacification of the lungs may be mild or unapparent; high positioning of the diaphragm may be the only radiographic clue to the presence of volume loss. Most of these cases are interpreted as "poor inspiratory effort." When generalized atelectasis is associated with diffuse pulmonary opacification, the interpretation is often diffuse pneumonia or pulmonary edema. The abnormally high diaphragm provides a clue to the correct diagnosis, but in practice it is often impossible to distinguish diffuse atelectasis from poor inspiratory effort or pulmonary edema.
